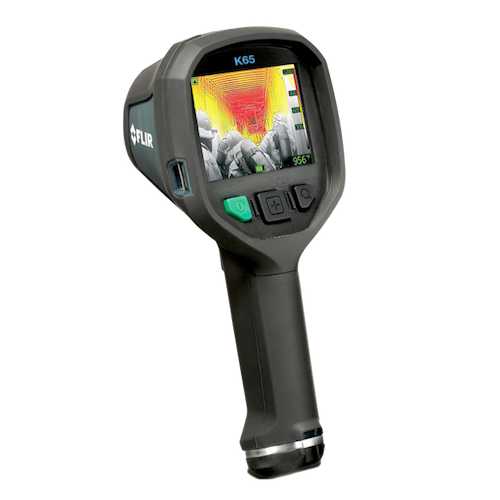

FLIR K65 320 X 240 THERMAL CAMERA KIT, NFPA
Kit Includes: (1) K65 Thermal Camera and (1) FLIR Battery Charger
The FLIR K65 is the advanced, feature-rich thermal imaging camera you need when NFPA® compliance is a must. With fully sealed connectors and a secured battery, the K65 is designed to be fully compliant with the NFPA 1801-2021 Standard for Thermal Imagers covering usability, image quality, and durability for firefighting.
Meets NFPA® Standards
The K65 is designed to be fully compliant with the National Fire Protection Association® (NFPA) 1801-2021 Standard for Thermal Imagers.
Crisp, Clear Imagery
The maintenance-free sensor produces detail-rich 320 x 240 pixels thermal images to help you navigate easier in smoky conditions.
In-Camera Video Storage
Store up to 200 photos or video files that can be played back in camera or from a computer for later analysis.
Specifications
- IR Resolution: 320 × 240 pixels
- Display: 4 in. LCD, 320 × 240 pixels, backlit
- Object Temperature Range: –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
- Image Modes: IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery
- Camera weight includes battery: 1.1 ±0.05 kg (2.4 ±0.1 lb.)
- Camera size (L x W x H): 120 x 125 x 280 mm (4.7 x 4.9 x 11 in.)
IMAGING & OPTICAL
- Contrast optimization: Digital image enhancement using FSX
- Depth of Field: 0.84 m to infinity (33 in. to infinity)
- Detector Type: Focal plane array (FPA), uncooled microbolometer (VOx)
- Field of view (FOV): 51° × 38°
- f-number: 1.25
- Focal Length: 9 mm (0.35 in.)
- Focus: Fixed
- Image Frequency: 60 Hz
- Image Modes: IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery
- IR Resolution: 320 × 240 pixels
- Non-radiometric IR video recording: MPEG-4 to internal flash memory
- Non-radiometric IR video streaming: Uncompressed colorized video using USB
- Pitch: 25 µm
- Spatial resolution (IFOV): 2.8 mrad
- Spectral Range: 8–14 µm
- Storage Capacity: 200 files in total, with a maximum duration of 30 minutes. The total number of files is co-dependent on the number of saved images.
- Thermal Sensitivity/NETD: <30 mK @ 30°C (86°F)
- Zoom: 2× digital zoom
ENVIRONMENTAL & CERTIFICATIONS
- Compliance: •NFPA1801:2021 •Ex-certified according to ANSI/ISA 12.12.01-2015 and meets Class I Division 2 Groups C and D •Class II Division 2 Groups F and G, Temperature Code T4/T135°C
- Directives: Certified according to NFPA 1801:2021 specification: Vibration Impact acceleration resistance Corrosion Viewing surface abrasion Heat resistance Heat and flame Product label durability
- Drop: 2 m(6.6 ft.) on concrete floor (IEC 60068-2-31)
- EMC: EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission)
- Encapsulation: IP 67 (IEC 60529)
- Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C(77°F to 104°F)/ 2 cycles
- Magnetic fields: EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)
- Operating Temperature Range: –20°C to 85°C (–4°F to 185°F) 150°C (302°F): 15 min. 260°C (500°F): 5 min.
- Relative Humidity: 95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing
- Shock: 25 g (IEC 60068-2-27)
- Storage Temperature Range: –40°C to 85°C(–40°F to 185°F)
- Tripod Mounting: UNC 1/4"-20 (adapter needed)
- Vibration: 2 g (IEC 60068-2-6)
POWER
- Battery capacity: 4.4 Ah, at 20°C to 25°C (68°F to 77°F)
- Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use. This operating time is independent of camera mode.
- Battery Type: Li Ion
- Battery voltage: 3.6 V
- Battery weight: 0.152 kg(0.3 lb.)
- Charging Temperature: 0°C to 45°C (32°F to 113°F)
- Charging Time: 2 h to 85% capacity, charging status indicated by LEDs
- Power Management: Automatic shutdown and sleep mode
- Safety [power supply]: CE/EN/UL/CSA/PSE 60950-1
- Start Up Time: <17 s. (IR image, no GUI)
- Start-up time from sleep mode: <4 s.
MEASUREMENT & ANALYSIS
- Accuracy: ±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)
- Auto Range: Yes, selectable on/off using FLIR Tools®
- Automatic Hot Detection: Heat detection mode (the hottest 20% of the scene is colorized)
- Camera size (L x W x H): 120 x 125 x 280 mm (4.7 x 4.9 x 11 in.)
- Camera weight includes battery: 1.1 ±0.05 kg (2.4 ±0.1 lb.)
- Isotherm: Yes, according to NFPA
- Languages: English
- Object Temperature Range: –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
- Set-up Commands: Local adaptation of units, date, and time formats
- Spot Meter: 1.0
GENERAL
- Compatible with FLIR software: FLIR Tools®
- Material: PPSU Silicon rubber Aluminum, cast Flame-resistant magnesium alloy
- Packaging Size: 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in)
USER INTERFACE
- Display: 4 in. LCD, 320 × 240 pixels, backlit
- Report Generation: Separate software (FLIR Tools)
COMMUNICATION & DATA STORAGE
- File Formats: Standard JPEG
- Image Storage: Standard JPEG; Image freeze: configurable
- Image Storage Capacity: 200 files in total the total number of files is co-dependent on the number of saved video clips.
- Image Storage Mode: IR only
- Interface: Update from PC devices Data transfer to and from PC
- Storage Media: Internal flash memory
- USB: USB Mini-B
